eRacks/ESERVE

eRacks/ESERVE: featuring the new Intel® Quad CoreTM Xeon processor, E5-2600 series. IntelŽ server processors deliver enhanced, energy-efficient performance for intensive business applications from virtualization and cloud computing to design automation or real-time financial transactions. Data bottlenecks are eliminated and I/O latency is dramatically reduced with IntelŽ Integrated I/O

Choose from the online configuration or request your own combination of components.



The default configuration for this desktop system includes:

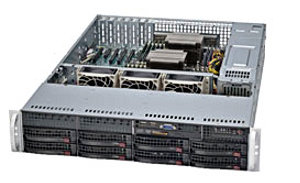

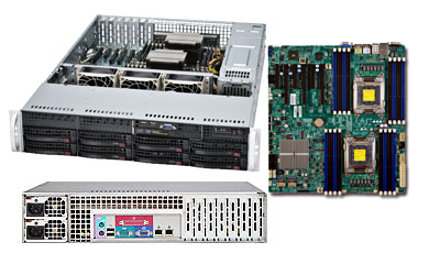

Chassis: Desktop eRacks/ESERVE 2U Rackmount Chassis, 740W (1+1) Redundant high-efficiency power supply with PMBus
Dimension (DxWxH): 25.5" x 19" x 3.5" chassis
CPU:Intel® Xeon®processor E5-2600 Dual Socket R (LGA 2011), Up to 20MB
Motherboard:Intel® C602 Chipset; QPI up to 8.0GT/s
IPMI: Support for Intelligent Platform Management Interface v.2.0, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support PCI Slots: 3x PCI-E 3.0 x16, 3x PCI-E 3.0 x8 (in x16)
LAN:2x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port
Network Controllers:IntelŽ i350 Dual Port Gigabit Ethernet, Virtual Machine Device Queues reduce I/O overhead, Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output, 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics:G200 (WinbondŽ WPCM450 BMC with graphic controller)
Memory: 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Drives: 8x Hot-swap 3.5" SATA HDD trays, Slim DVD-ROM drive
Operating System: Ubuntu Linux operating system installed as default.
Modification option:Quietization is possible, although some system noise will still be present. Please contact eRacks for more information or custom orders!




Configure eRacks/ESERVE

Choose the desired options and click "Add to Cart". You may also request a quote, please add additional requests and information in the "Notes" field. Your quote request will be sent to your profile's eMail if you are logged in, otherwise enter the email address below (required only if not logged in).

Current Configuration
Base Price: $ 2777.00 As Configured: $ 2777.00
Configuration Summary:
Default Configuration
Option Choices More Info Add/Subtract
Chassis2U ESERVE 8HD chassis 25.5in Depth 750W RPS
MotherboardDual socket R Xeon E5-2600 ESERVE motherboard
ProcessorIntel Xeon Quad-Core E5-2603 1.8GHz 10MB CPU
Memory DDR32 GB 1600MHz DDR3 ECC REG (1 DIMM)
Slim Optical Drive BayDVDRW Dual Layer
Removable Hard Drives2 x 320 GB SATA3 7200rpm Hard Drives
PCI 1none
PCI-enone
Operating SystemUbuntu Linux 16.04 LTS Server Edition
Org Contribution$5 to the Ubuntu Studio Project
WarrantyStandard 1yr full /3yr limited warranty
Notes Enter notes or custom instructions for this item here

To request a quote, please add additional requests and information in the "Notes" field, above. Your quote request will be sent to your profile's eMail if you are logged in, otherwise enter the email address below (required only if not logged in).
