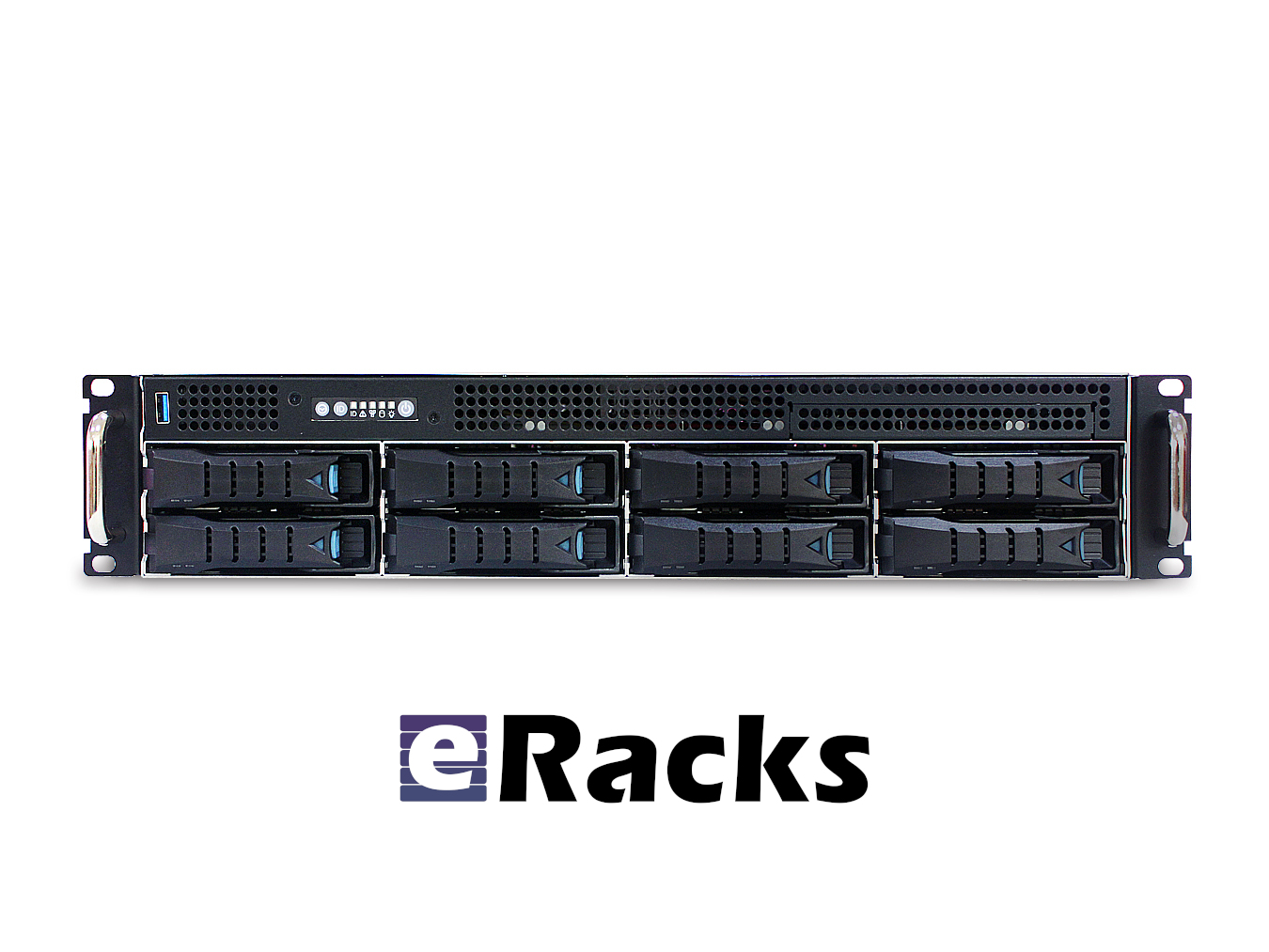

The eRacks/NAS8 is a 2U large capacity storage server with eight 3.5" hot-swap drive bays.  With quote the latest 16TB drive technology eRacks/NAS8 storage server can now provide up to 128 Terabytes of raw storage space.

There is still room for an available DVD/BD/CD Optical drive, and a 3U chassis version with vertical drive bays.


eRacks/NAS8 is delivered pre-configured with the latest open source operating system and software per your requirements, including, but not limited to, Ceph, LizardFSOpenStack. Cloudstack, Open Nebula, Samba, or your choice of any other open-source packages you need - just put your requirements in the "Notes" field when you place your order or request a quote.


The 14TB drives are available in both HGST 14 Terabyte hard drives, and Seagate 14TB Drives - also available across our entire line of storage servers.


The HGST drives are enterprise-class, high-reliability, helium-filled "Green" drives, which use less power while providing more data storage space.  Choosing these drives make eRacks/NAS8 a truly a greener solution.



The Seagate or HGST Archive SMR/PMR (Shingled Magnetic Recording) drives are for archival applications which have a typical usage profile of writing mostly new data (or journal-style data "At the end"), rather than re-writing existing data - hence the choice of these drives are more well-suited for Archival applications, or Near-Line Storage or Cold Storage.



As always, the unit comes pre-installed with your choice of open source operating system and software, and pre-configured to your needs and instructions - simply put any special provisioning or partition requests in the "notes" field when you place your order or request a quote.


For virtualization, we can install OpenStack, CloudStack, our own lightweight eVirt™ virtualization, or your choice.



For network storage / SDS (Software-defined-storage), we can install Ceph, DRBD, Samba, DLNA, NFS, etc. - you name it, we'll install it for you.

Contact us

Please email with questions or click "Get a Quote" to request a custom quote.


Features & Specifications

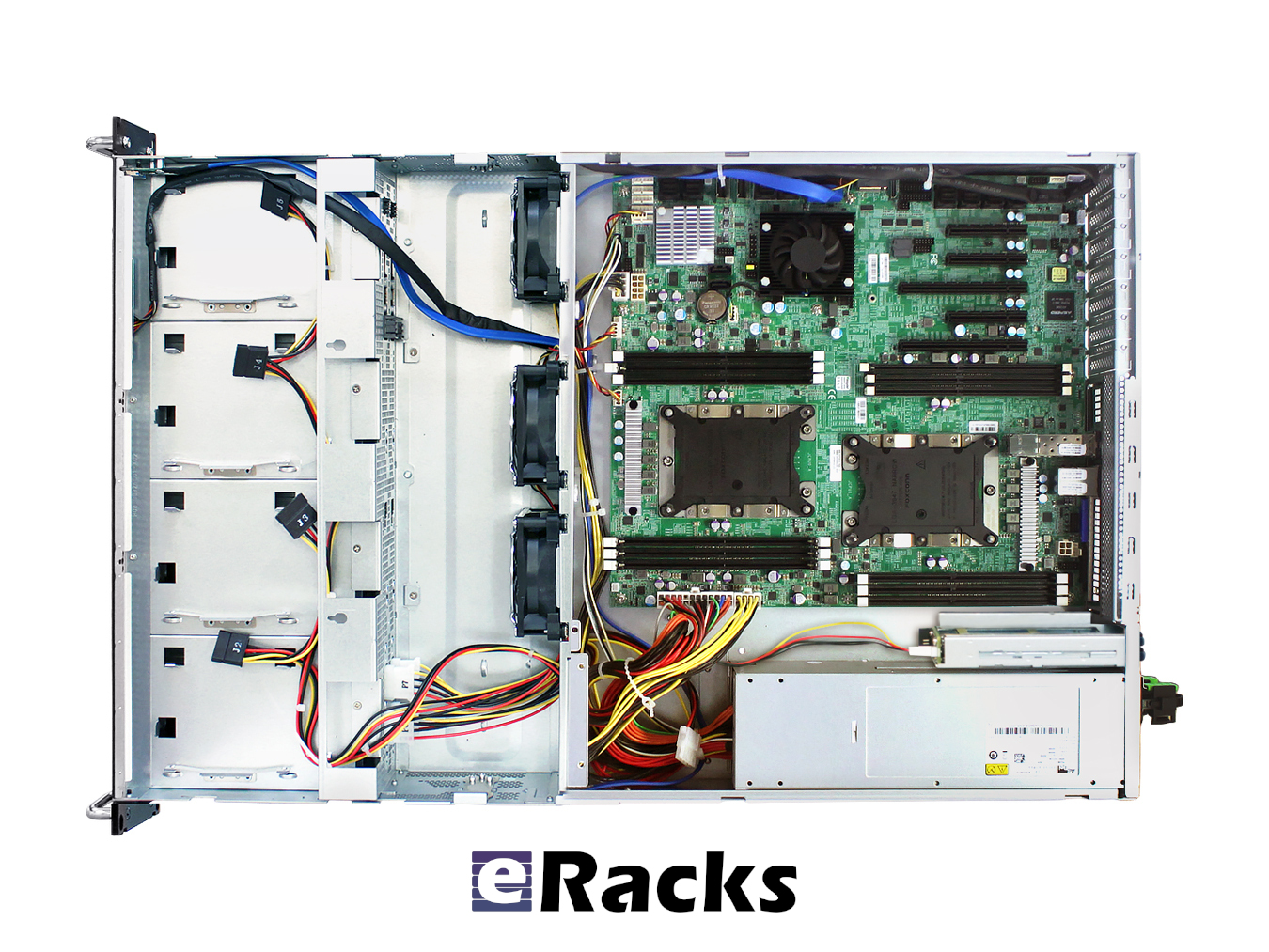

eRacks/NAS8 standard hardware configuration includes:

  • 2- hieght rackmount chassis; 3U available (with full-height 5.25" Optical Drive bay)
  • 2U SATA / SAS backplane with Enclosure Management
  • Multiply-redundant power supply options available
  • 8 Removable 3.5" hot-swap drives up to 8 Terabytes
  • Motherboard: Intel single or dual Xeon-capable motherboard
  • 2x (4x available) Gigabit Ethernet (2 or 4-ports 10GigE also available)
  • On board dedicated IPMI GbE
  • Optional Dual-Xeon processors also available
  • Up to 1.5TB DDR4 Memory available by custom quote
  • RAID card: LSI / 3ware / Avago SATA  / SAS 8-port

Note: Optical drive on 3U chassis is full-height.  Also optional Slim Optical Drive on 2U chassis.

Note: AMD-based configurations, single/dual/quad socket, multi-core, etc are available by custom configuration request.

Please email or phone to request a custom quote.

Configure eRacks/NAS8

Choose the desired options and click "Add to Cart". You may also request a quote, please add additional requests and information in the "Notes" field. Your quote request will be sent to your profile's eMail if you are logged in, otherwise enter the email address below (required only if not logged in).

Current Configuration

Base Price: $ 3995.00 As Configured: $ 3995.00
Configuration Summary:
Default Configuration
Option Choices More Info Add/Subtract
Chassis2U-8RHD 560W Gold PSU 25.5in depth
MotherboardeRacks-certified Intel Single-Xeon NAS motherboard
Xeon Dual-class CPUsIntel Xeon E5-2603 v4 (6 Cores @ 1.70GHz, PScore 5621)
Memory DDR4 ECC / REG4GB DDR4 Memory ECC / REG
RAID ConfigurationRAID 1 (mirroring)
Hard Drive Array3TB WD Red NAS 3.5-inch SATA 6Gb/s 5400rpm Hard Drive
Network Interfaces2x GbE Network Port, RJ45
RAID controller(s)LSI MegaRAID SAS / SATA multiport RAID Controller & hardware
PCI 2none
Rails and Bracketsnone
Keyboard and Mousenone
Operating SystemUbuntu Linux 18.04 LTS Server Edition
Cloud & NAS SoftwareGlusterFS
WarrantyStandard 1yr full /3yr limited warranty
Notes Enter notes or custom instructions for this item here

To request a quote, please add additional requests and information in the "Notes" field, above. Your quote request will be sent to your profile's eMail if you are logged in, otherwise enter the email address below (required only if not logged in).
