Blade Servers

eRacks Blade Servers: Available now! - call to configure!



Maximum Density ·  Affordability  · Reduced management costs  ·  Lower power consumption  ·  Optimal ROI   · High scalability

Blades are primarily suitable for high density server farms, where efficiency and cost-to-operate are significant. Each of eRacks blade servers has its own memory, CPUs, GPUs, hard drives, and network connections, and can be hot-swapped. Several blade servers reside together in one enclosure which provides the power and cooling for the set. An eRacks fully-populated blade enclosure can house between 10 and 14 blades, including twin-node blades. Read more about blades in our Press Release.
Call 408-455-0010 for Quote or for more detailed configuration information.

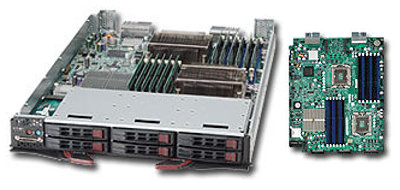

eRacks/XBLADE
use in eRacks/BLADE10.enclosure

Single or Dual Xeon 1366 CPUs
Up to 192 GB Memory per blade
Up to six SATA3/ SAS/ SSD Drives per blade
RAID 0,1,10,or 5
Integrated IPMI1.0 w/remote KVM
Infiniband DDR/QDR support & 10G Ethernet options
Capacity per one 7U enclosure:
   120 Cores (6 cores x 2 CPUs x 10 blades)
   1920GB Memory (192 x 10)
   45TB Drives (6 x 750GB x 10)

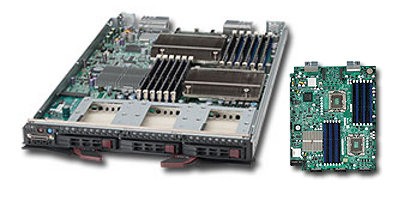

eRacks/YBLADE
use in eRacks/BLADE14.enclosure

Single or Dual Xeon 1366 CPUs
Up to 96 GB Memory per blade
Up to three SATA3/ SAS/ SSD Drives per blade
RAID 0,1,or 5
Integrated IPMI1.0 w/remote KVM
Infiniband DDR/QDR support & 10G Ethernet options
Capacity per one 7U enclosure:
   168 Cores (6 cores x 2 CPUs x 14 blades)
   1344GB Memory (96 x 14)
   31.5TB Drives (3 x 750GB x 14)

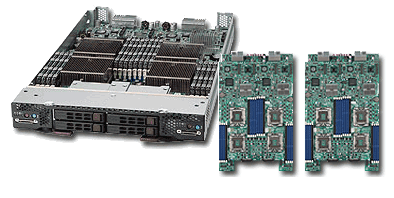

eRacks/TBLADE
use in eRacks/BLADE10.enclosure
Two nodes per server blade.
Single or Dual Xeon 1366 CPUs per node
Up to 128 GB Memory per node
2 SATA3/ SAS/ SSD Drives per node
Dual-Port Gigabit Ethernet per node
Integrated IPMI1.0 w/remote KVM
Infiniband DDR/QDR support & 10G Ethernet options
Capacity per one 7U enclosure:
   240 Cores (6 cores x 2 CPUs x 10 blades x 2 twin)
   2560GB Memory (128 x 10 x 2)
   30TB Drives (2 x 750GB x 10 x 2)
Call for configuration assistance and quote

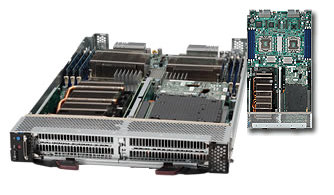

eRacks/RENDERBLADE
use in either BLADE10 or BLADE14 enclosures

Up to two NVIDIA Tesla M2050 and M2070 GPUs
Single or Dual Xeon 1366 CPUs
Up to 96 GB Memory per node
One SATA3/ SAS/ SSD Drives
Integrated IPMI2.0 w/ remote KVM
Integrated Matrox G200eW Graphics
Infiniband DDR/QDR support & 10G Ethernet options
Capacity per one 7U enclosure:
   120 Cores (6 cores x 2 CPUs x 10 blades), 8960 GPU CUDA Cores
   960GB Memory (96 x 10)
   7.5TB Drives (1 x 750GB x 10)
Call for configuration assistance and quote!

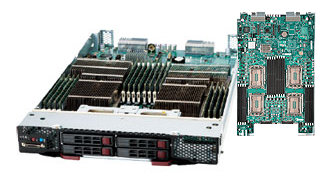

eRacks/ABLADE
use in eRacks/BLADE10.enclosure
AMD-G34 Quad Blade Server
Quad AMD Opteron 6000 series processors
Up to 256 GB DDR3 Memory
Four SATA3/ SAS/ SSD Drives
Dual-Port Gigabit Ethernet
Integrated IPMI1.0 w/remote KVM
Infiniband DDR/QDR support & 10G Ethernet options
Capacity per one 7U enclosure:
   640 Cores (16 cores x 4 CPUs x 10 blades)
   2560GB Memory (256 x 10)
   30TB Drives (4 x 750GB x 10)
Also available in twin configuration. Call for configuration assistance and quote


Maximize server density and efficiency.

This populated enclosure containing twin-node bladeservers has a density of 20-nodes and 2.56TB memory per 7U of rackmount height.

eRacks experts can design and customize your blade server system.
Call for configuration assistance and quote.


7U Enclosure, 12.1" x 18.5" x 29"
Power LED, Fault LED
Supports up to 10 hot-plug processor blades
Up to 16 cooling fans
Up to two hot-plug management modules providing remote KVM and IPMI 2.0 functionalities
Supports up to two hot-plug Gigabit Ethernet switches / Pass-Through Modules

7U Enclosure, 12.1" x 18.5" x 29"
Power LED, Fault LED
Supports up to 14 hot-plug processor blades
Up to 16 cooling fans
Up to two hot-plug management modules providing remote KVM and IPMI 2.0 functionalities
Supports up to two hot-plug Gigabit Ethernet switches / Pass-Through Modules
Custom configurations available! Simply email or call us to discuss your needs.
