eRacks/BLADE10.enclosure



Dense computing power:
Configure the Blade Server Enclosure for up to 10 Blade Servers





eRacks/BLADE10.enclosure: High Density Computing, Featuring up to 192GB Memory and Six drives per node.



Up to 10 eRacks/XBLADE Servers or 10 eRacks/TBLADES (20 nodes) can be installed in a 7U chassis.

Filled with the eRacks/TBLADE servers (with two nodes per server), the eRacks/BLADE10.enclosure provides more than 50% density savings with 120 nodes and 24 switches in a 42U rack.

Specifications:
  • Up to 10 hot-plug processor blades
  • Dimension: 12.1" x 18.5" x 29"
  • Power LED, Fault LED
  • Infiniband Switch: Supports up to two hot-plug QDR IB switches
  • Supports up to two hot-plug Gigabit Ethernet switches / Pass-Through Modules
  • Up to 16 cooling fans
  • Up to four hot-swap 1620W / 2500W / 3000W power supplies, N+1 redundant
  • Up to two hot-plug management modules providing remote KVM and IPMI 2.0 functionalities
Please contact eRacks for more information or custom orders!




Configure eRacks/BLADE10.enclosure

Choose the desired options and click "Add to Cart". You may also request a quote, please add additional requests and information in the "Notes" field. Your quote request will be sent to your profile's eMail if you are logged in, otherwise enter the email address below (required only if not logged in).

Current Configuration
Base Price: $ 5220.00 As Configured: $ 5220.00
Configuration Summary:
Default Configuration
Option Choices More Info Add/Subtract
Base SystemBLADE10.enclosure 7U base unit 12.1 x 18.5 x 29in
Power Supply2x 2500RPS for BLADE10.enclosure (TWIN)
ModulesHot-plug Management Module: remote KVM, IPMI 2.0
Org Contribution$5 to the Ubuntu Studio Project
WarrantyStandard 1yr full /3yr limited warranty
Notes Enter notes or custom instructions for this item here

To request a quote, please add additional requests and information in the "Notes" field, above. Your quote request will be sent to your profile's eMail if you are logged in, otherwise enter the email address below (required only if not logged in).

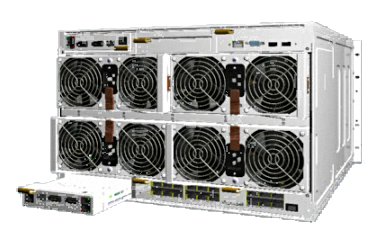

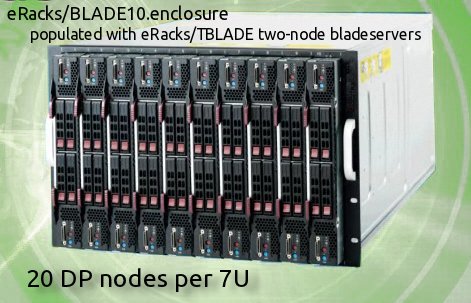

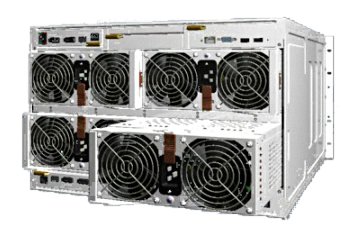

More eRacks/BLADE10.enclosure Photos
