eRacks/NAS4

eRacks/NAS4



The eRacks/NAS4 is a great rackmount storage server solution for companies that want a robust, reliable, professional-grade rackmount NAS server with redundancy, while still in 1U of rackspace - and they may not need vast storage capacity, but still would like to have access to the same powerful features as found in our higher-end storage servers.

eRacks/NAS4 is our 1U 4-drive bay NAS rack-mount server, with enterprise-level features, power, and redundancy found in our larger NAS-series rack mount systems.

We have recently upgraded our eRacks/NAS4 options and choices to include the latest 30TB storage drives, to reach a total capacity of 120 Terabytes of raw storage with CMR/PMR drives, and up to 144TB with the latest 36TB SMR drives as of 2025 (by custom quote, typically for archival applications).

Green

eRacks offers many green HDD options, including HGST enterprise-class, high-reliability, helium-filled "Green" drives, as well as the WD "Green" drives, which spin down when not in use. These and other "Green" drive options use less power while providing more data storage space.  Choosing these drives make eRacks/NAS4 a truly a greener, eco-friendly solution.

Archival & Near-Line Storage

The WD, HGST, or Seagate Archive SMR (Shingled Magnetic Recording) drives are for archival applications which have a typical usage profile of writing mostly new data (or journal-style data "At the end"), rather than re-writing existing data - hence the choice of these drives are more well-suited for Archival applications, or HDD-Based Near-Line Storage or Cold Storage.  These are available in the dropdowns - Note that up to 36TB WD SMR drives are now available by custom quote!

Pre-configured

As always the unit comes pre-installed with your choice of open source operating system and software, and pre-configured to your needs and instructions - simply put any special provisioning or partition requests in the "notes" field when you place your order or request a quote.

Cloud-Ready

For virtualization, KVM (Kernel Virtual Machine) is pre-installed on Linux, and BHyve is preinsatlled on capable BSD systems.  We can also pre-install OpenStack, CloudStack, ProxMox, or our own lightweight eVirt (Contact us for details) virtualization, or your choice.

Scale-out or Scale-up

For rackmount network storage / SDS (Software-defined-storage), we can install Ceph, DRBD, OpenStack Cinder, Gluster, Samba, DLNA, Amahi, OpenMediaVault, Rockstor, TrueNAS, Nexenta, CryptoNAS, OpenDedupe, OpenAttic, NFS, XFS, BTRFS, etc - you name it, we'll install it for you.

Questions? email info@eracks.com , contact us on Social Media, or click "Get a Quote" for a custom quote.



Features & Specifications

Standard hardware configurations include:

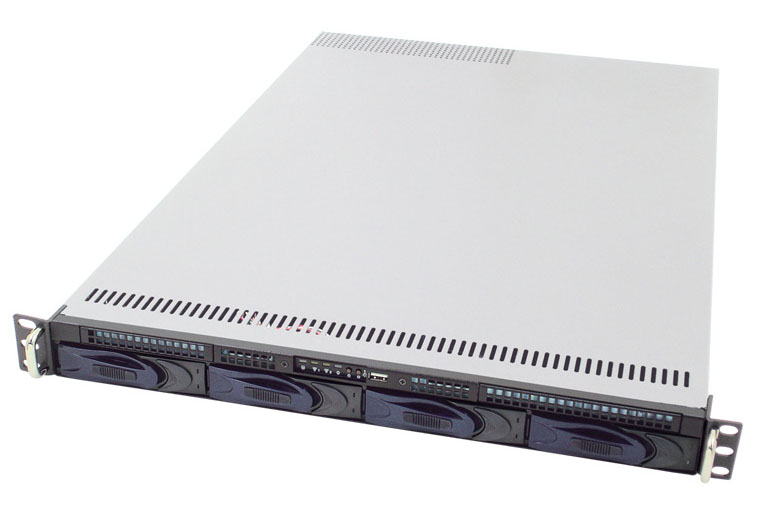

  • 1U height, standard depth  (short-depth or deeper-depth for larger motherboards available by custom quote)
  • Multiple Redundant Power Supply(ies)
  • 4 Removable 3.5" Hard Drives with total raw storage space of up to 120TB
  • eRacks-certified motherboard - Intel or AMD, single or dual CPU
  • 2x GbE, Up to 4x Gigabit Ethernet, 2x or 4x 10GbE available
  • On board BMC / IPM / RedfishI with its own dedicated GbE
  • AMD Ryzen, Epyc, or Intel Xeon Single or Dual-Class Processors available - select your platform

Other configs always available by quote.

Please email info@eracks.com or contact us on Social Media to request a custom quote.

Configure eRacks/NAS4

Choose the desired options and click "Add to Cart", or "Get a Quote". Please add any additional requests and information in the "Notes" field. Your quote request will be sent to your profile's eMail if you are logged in, otherwise enter the email address below (required only if not logged in).

Current Configuration

Base Price: $ 1895.00 As Configured: $ 1895.00
Configuration Summary:
Default Configuration
Option Choices More Info Add/Subtract
Chassis 4HD: 1U NAS chassis, 400W+ Single PSU
Motherboard eRacks-Certified Motherboard
CPU Brand & Platform AMD Ryzen
AMD Dual Epyc CPU 1st Gen. AMD EPYC™ 7251 8 cores 2.1GHz
AMD Epyc CPU 2nd Gen. AMD EPYC™ 7232p (8 cores 3.1GHz)
Xeon CPU Intel® Xeon® Silver 4214Y CPU 12 Core 2.2GHz
AMD Ryzen CPU AMD Ryzen 5 Series Current-Gen
Intel Midrange CPU Intel Core i5 3.3GHz CPU
AMD Ryzen Threadripper Latest Gen CPU 7000 Series AMD Ryzen Threadripper 7960X 24-core CPU
Server RAM ECC/REG Memory GB of RAM - DDR4 / 5 Server Memory ECC / REG
Slim Optical Drive Bay none
RAID Configuration RAID 1 (mirroring)
HDD Brand & Technology Western Digital Red Plus
WD Purple HDDs 4TB WD Purple Surveillance 3.5-inch HDD
WD Purple Pro HDDs 8TB WD Purple Pro Surveillance 3.5-inch HDD
WD Blue HDDs 4TB WD Blue 5400rpm 3.5-inch HDD
WD Purple HDDs 4TB WD Purple Surveillance 3.5-inch HDD
WD Red Plus NAS HDDs 4TB WD Red Plus NAS 3.5-inch SATA 6Gb/s 5400rpm Hard Drive
WD Red Pro NAS HDDs 2TB WD Red Pro NAS 3.5-inch SATA 7200rpm Hard Drive
WD Gold Enterprise HDDs 2TB WD Gold Enterprise 7200rpm 3.5-inch SATA6 HDD
Network Interfaces 2x GbE Network Port, RJ45
PCI none
Add-ons none
Rails and Brackets none
Keyboard and Mouse none
Operating System Ubuntu Linux LTS Server (Latest)
Cloud & NAS Software File server - SMB/CIFS, NFS, SFTP, AFP, DAV, FTP & others on request
Warranty Standard 1yr full /3yr limited warranty
Notes Enter notes or custom instructions / requests for this product or item here

To request a quote, please add additional requests and information in the "Notes" field, above. Your quote request will be sent to your eRacks user profile's eMail (if you are logged in - if not, enter your eracks user email below).
