eRacks/LEAF

Installation and configuration of your choice of Operating System, as well as Gnome, KDE or other desktop environment, are all included.
Chassis Options:

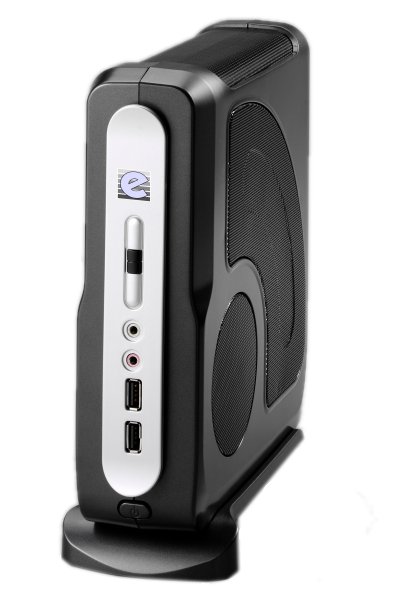

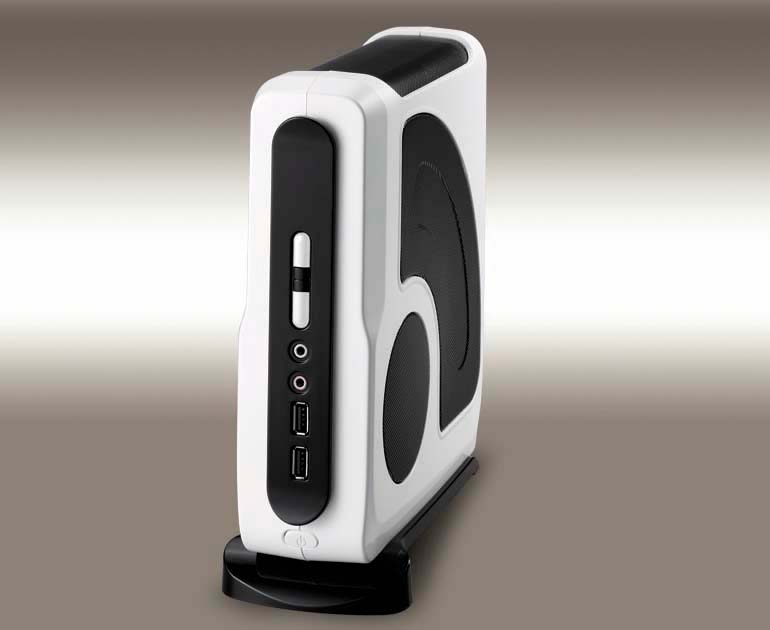

Chassis: Black & White chassis: Dimensions(WxHxD): 60 mm x 230 mm x 205 mm / 2.36in x 9.06in x 8.07in

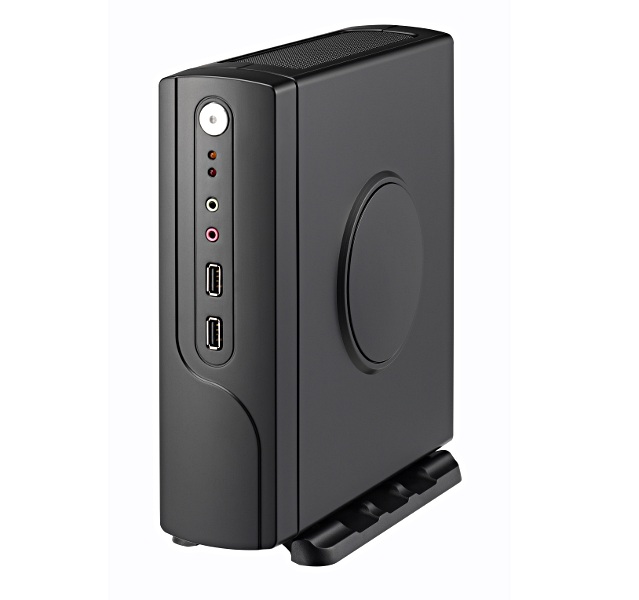

VESA mount chassis option: Dimensions(WxHxD): 64 mm x 233 mm x 208 mm / 2.5in x 9.2in x 8.2in
Power Supply: Built-in 80W DC board, External 60W AC adapter (brick)
Motherboard & CPU: Intel ATOM D525 1.8GHz Dual Core Mini-ITX (option for other WIFI-capable boards)
Video: Built-in Intel Graphics with GMA 950 Technology
Audio: Built-in audio
LAN: 10/100/1000 Ethernet
Memory: 204pin SO-DIMM, Max Capacity 4GB
Drives:2.5in mobile Hard Drive
Ports: Front: 2 USB 2.0, 2 Audio jacks: line-in, mic, Power button
Operating System:Ubuntu Linux Operating System installed as default. Choice of desktop environments including GNOME, KDE, and others.
Note: Monitor and keyboard are not included, but can be ordered separately or through choices given below.
Configure eRacks/LEAF
Choose the desired options and click "Add to Cart". You may also request a quote, please add additional requests and information in the "Notes" field. Your quote request will be sent to your profile's eMail if you are logged in, otherwise enter the email address below (required only if not logged in).
Default Configuration
More eRacks/LEAF Photos
